• Thermocouple 1x "J", "K"
• Measuring range -50 to +800 °C
• Accuracy class 2 according to EN 60584-1

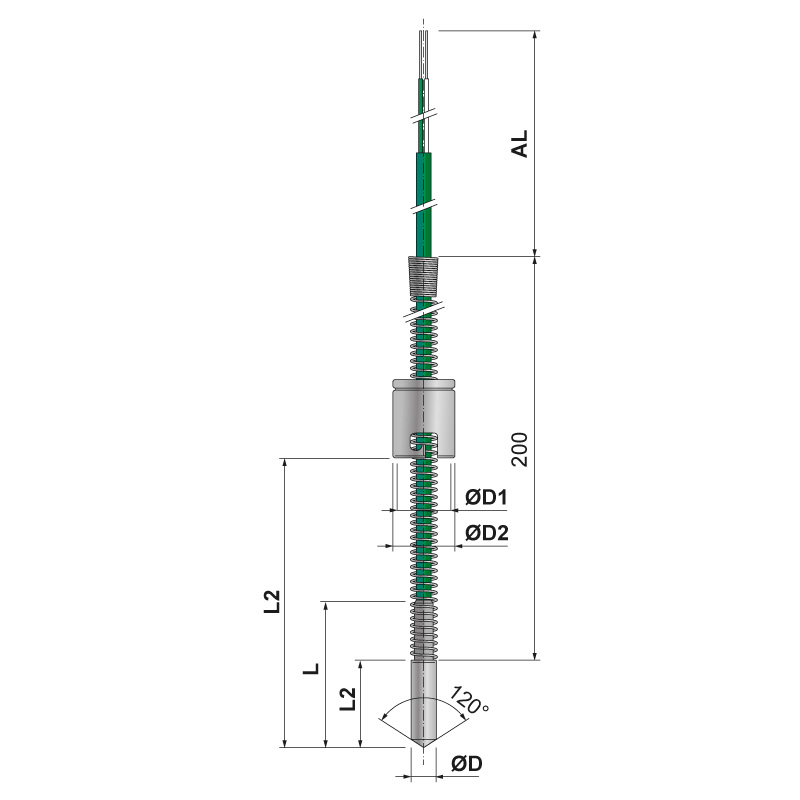

• Stem diameter 6 and 8 mm, peak angle 120°
• Stem material stainless steel 1.4401
• Adjustable suspended bayonet cap in range 15 to 190 mm, with inner diameter 12.2 to 15.2 mm / 2 slots
• Optional nominal length, insulation and wiring termination
• Full stainless design
• Optional fastening threaded joint
• Housing up to IP 67
