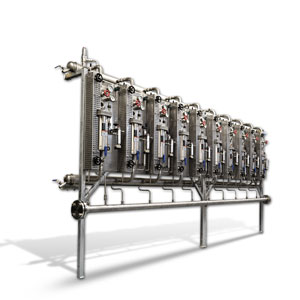

Panels for samples conditioning are complete and efficient assembly for temperature and pressure reduction of measured medium samples. They cover ranges from the lowest up to the highest parameters.

• Effective reduction of temperature, pressure and control of the medium flow
• Constant flow of sample ensures repeatable results
• Usable for on-line measuring or sampling
• Safe and reliable operation thanks to shut-off valves
• Possibility of adjustment to specific conditions of measurement due to the modular construction
• Single channel panels can compose multi-channel systems delivered in analysis conveyors or houses
• Compact design and easy installation is compatible with systems of other manufacturers
• Optional choice and combination of components from various manufacturers
• Turnkey deliveries with project documentation, installation and commissioning



Panels are supplied with stainless steel assembly plate, with these standard items:

• Pressure cooler
• Shut-off (alternatively drain) vent of sample inlet
• Pressure reducer
• Self-operating temperature shut-off valve – with automatic or manual renewable blocking function
• Bypass regulator to maintain a constant pressure of sample at the outlet
• Manual sampling

Optional items:

• Valves and stainless steel pipes for inlet of cooling medium (including non-return valve)
• Visualization of media flow
• Control of cooling medium flow
• Safety valve on the side of cooling medium
• Measurement of medium temperature
• Measurement of output medium pressure
• Sample filtration

Other options according to customer requirements
