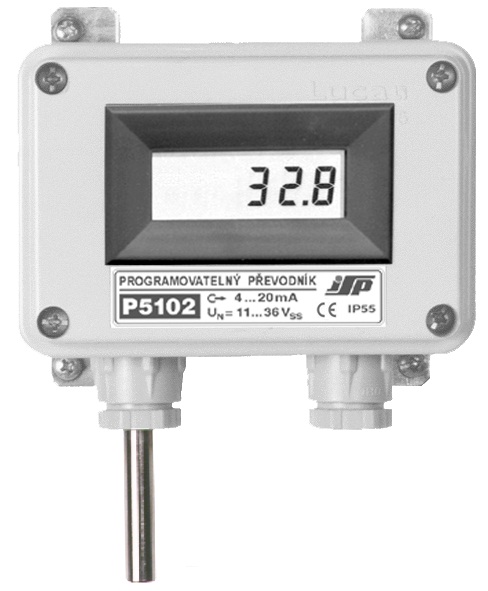

Spatial Resistance Temperature Sensors with Two-wire Programmable Transmitter P5102 LT
- Measuring resistor Pt100
- Measuring range: with cable sensor -40 to +180 °C, with local sensor -40 to +70 °C (without display), 10 to +55 °C (with display)
- Accuracy class A, B according to EN 60751
- Converts of Pt100 resistance signal to current output signal 4 to 20 mA of the temperature
- Built-in LCD display indicates the temperature in the whole input range with readability 0,1 °C
- Allows to directly change the analog output range using buttons
- Indicates break of temperature sensor or line using either high (>20 mA) or low (<4 mA) output current
- Version with local sensor or with movable sensor with cable line. Mounting on the wall using the bracket
- Wide range of uses
- Housing IP 55
