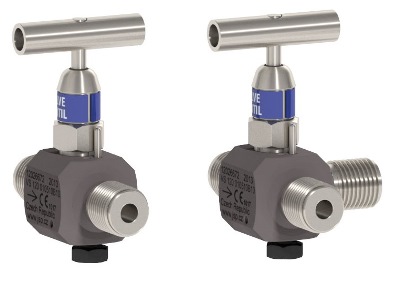

One-way Vent Valve VS 100, One-way Valve VS 110, Testing Vent Valve VS 120

  • Operating pressure up to 42 MPa
  • Operating temperature up to 500 °C
  • Material stainless steel 1.4541
  • Sealing component selection from different material: Graphite, PTFE, PEEK, Viton, EPDM
  • Gland packing adjuster
  • Seat diameter 4 mm
  • EU Type Examination Certificate according to Directive PED 2014/68/EU



   Links and documentation:

Product Inquiry
 		  Cat. No.: 0402
